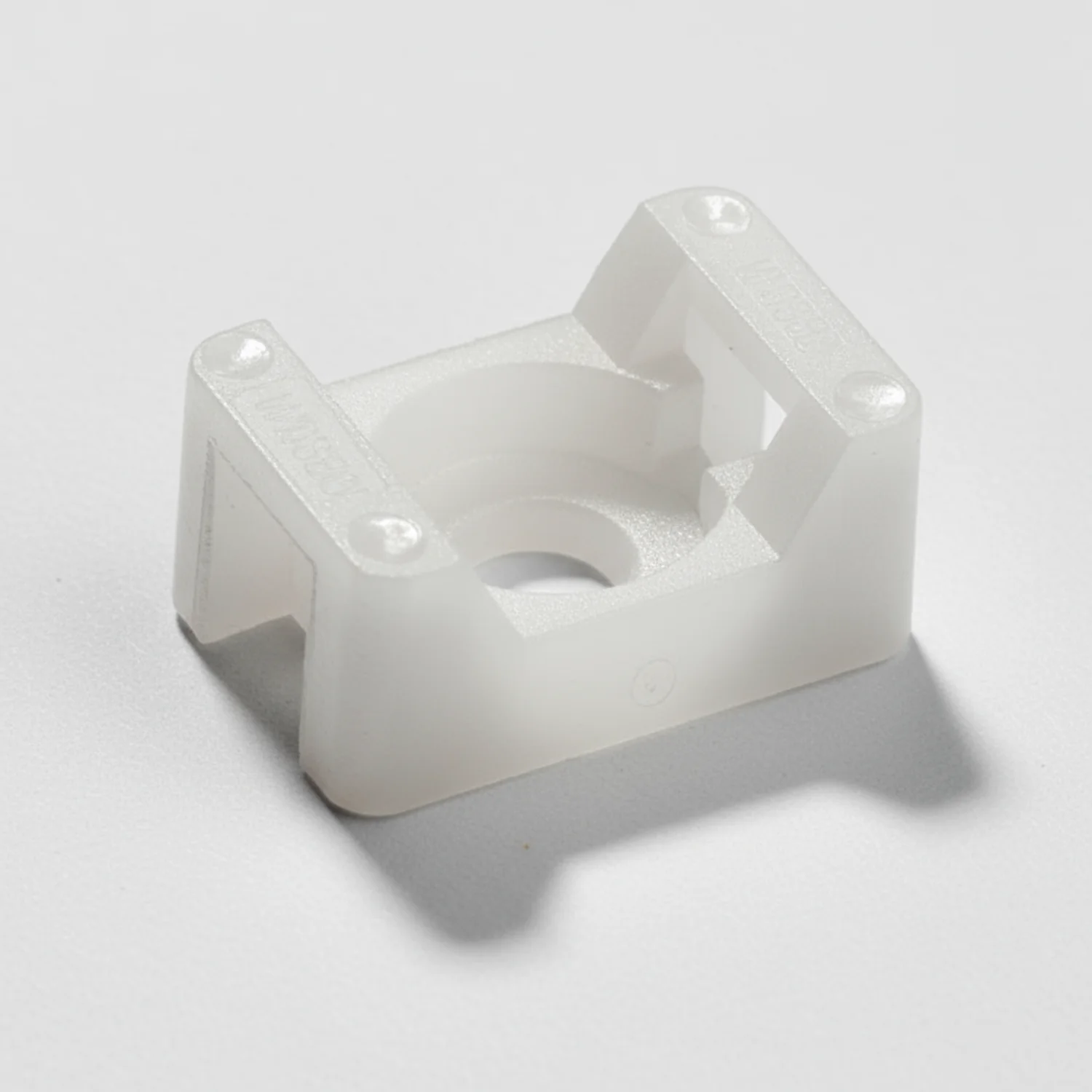

Thomas & Betts SMNY-001-9-D Cable Tie Screw Mount Mounting Base .385x.600" Natural Nylon 6.6 Screw Mounting- #6, #8 Screw For Use with Cable Ties / Zip Ties Up to 50 lbs. 500/Bag

Specifications

• Material: Nylon 6.6
• Color: Natural
• Length: .600"
• Width: .385"
• Mounting Method: Screw
• Stud Size: #6, #8 Screw
• For Cable Ties: Up to 50 lbs
• Operating Temperature: -40°F to 185°F
• Flammability: UL 94 V-2

Performance Advantages

• PA66 / Nylon 6.6 construction provides excellent mechanical strength, chemical resistance, and dimensional stability.
• Stud-mount design slides over existing bolts or studs for fast, tool-free installation.
• Rated UL 94 V-2 for use in flame-sensitive installations.

Applications

• Electrical panel and enclosure cable routing
• Automotive and aerospace wire harness retention
• Telecommunications and data center cable management
• HVAC and industrial equipment wiring organization
• OEM equipment manufacturing and assembly lines

Installation Notes

• Secure the mount to the surface using a #6, #8 Screw through the mounting hole.
• Thread the cable tie through the mount and tension to the desired tightness.
• Verify the mount and cable tie are fully engaged after installation.
• Do not exceed the stated operating temperature range (-40°F to 185°F).

Packaging

• Supplied in manufacturer-standard packaging.
