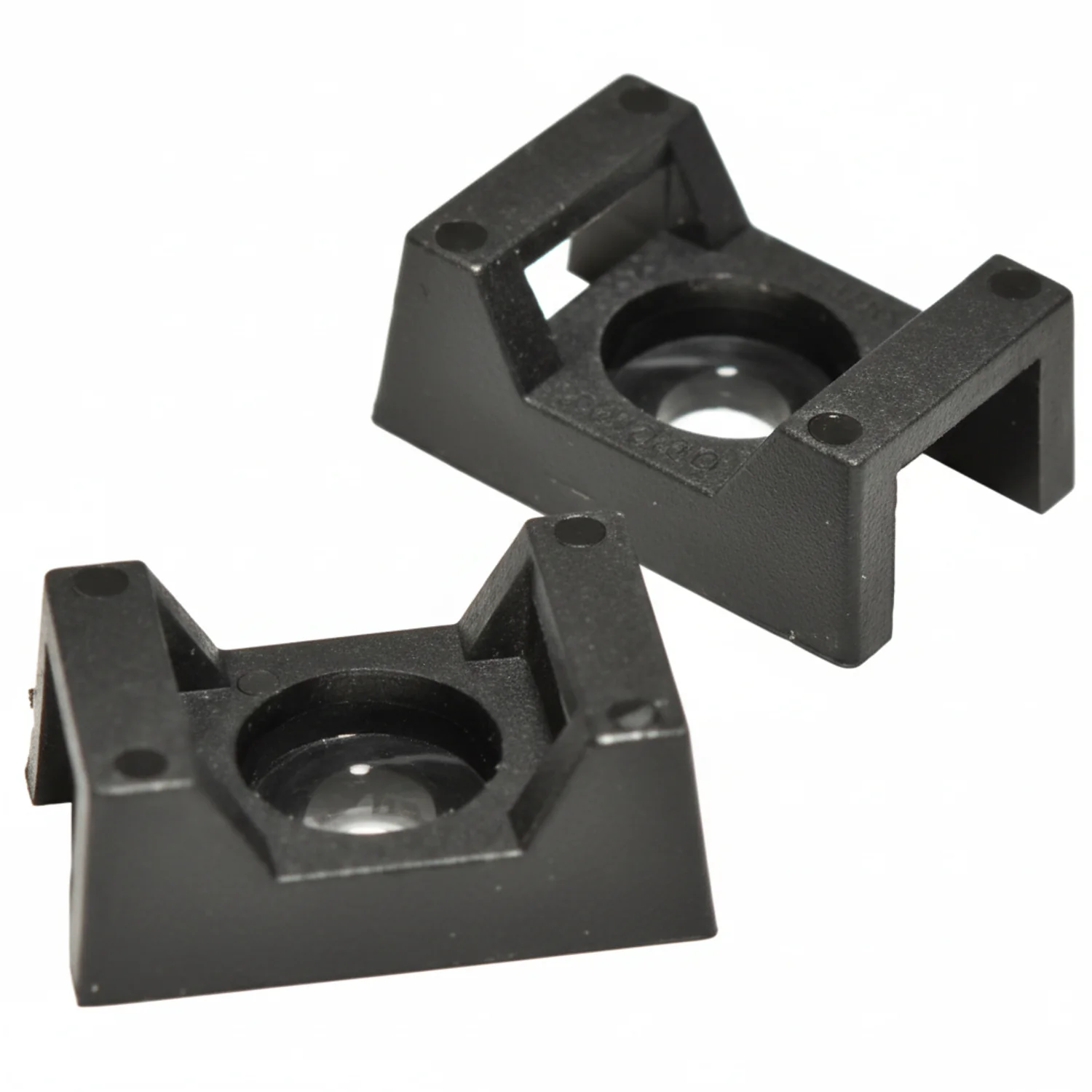

Saddle Support Mounting Base UV Black #6 Screw 100/bag Part # CTM6-0C

Specifications

• Material: Nylon 6/6
• Color: UV Black
• Length: 0.60"
• Width: 0.38"
• Height: 0.27"
• Cable Tie Width Max: .19"/50lb Tensile Strength
• Screw Size: #6
• Mounting Hole Diameter: 0.16
• Slot Width: 0.20"
• Slot Height: 0.06"
• Counter Sink Dia: 0.28"
• Counter Sink Depth: 0.10"
• Operating Temperature: -40°F to +185°F (-40°C to +85°C)
• Flammability: 94V-2
• UL Listed: 21
• UL Air Handling: UL AH-2
• RoHS Compliant: Yes

Performance Advantages

• PA66 / Nylon 6.6 construction provides excellent mechanical strength, chemical resistance, and dimensional stability.
• Saddle/cradle profile supports the wire bundle from below, preventing pinching and maintaining clean routing.
• Recessed screw hole (#6) keeps cable ties flush and prevents snagging.
• Rated 94V-2 for use in flame-sensitive installations.
• UL Air Handling Approved (UL AH-2) for plenum and return-air spaces.
• RoHS-compliant construction ensures regulatory conformance.
• Saddle Mounting Base has a recessed hole for a pan head screw.
• Cradle shape provides a saddle for the wire run.
• The cable tie is threaded under the bundle and tightened in the usual manner.
• The recessed screw hole allows cable ties to easily pass over screw head.
• Saddle Mounts are designed for maximum stability and support when securing cable bundles and tubing.
• Low profile design keeps bundle close to the mounting surface.

Applications

• Electrical panel and enclosure cable bundle support and routing
• Automotive and aerospace wire harness saddle-mounting
• Telecommunications and data center structured cable management
• HVAC and industrial equipment wiring organization
• OEM equipment manufacturing and assembly lines

Installation Notes

• Secure the saddle mount to the surface using a #6 pan head screw through the recessed center hole.
• Route the cable bundle into the saddle cradle, thread a cable tie under the bundle, and tension to the desired tightness.
• Verify the mount is seated flush and the cable tie is properly secured after installation.
• Do not exceed the stated operating temperature range (-40°F to +185°F (-40°C to +85°C)).

Packaging

• Supplied in manufacturer-standard packaging.
