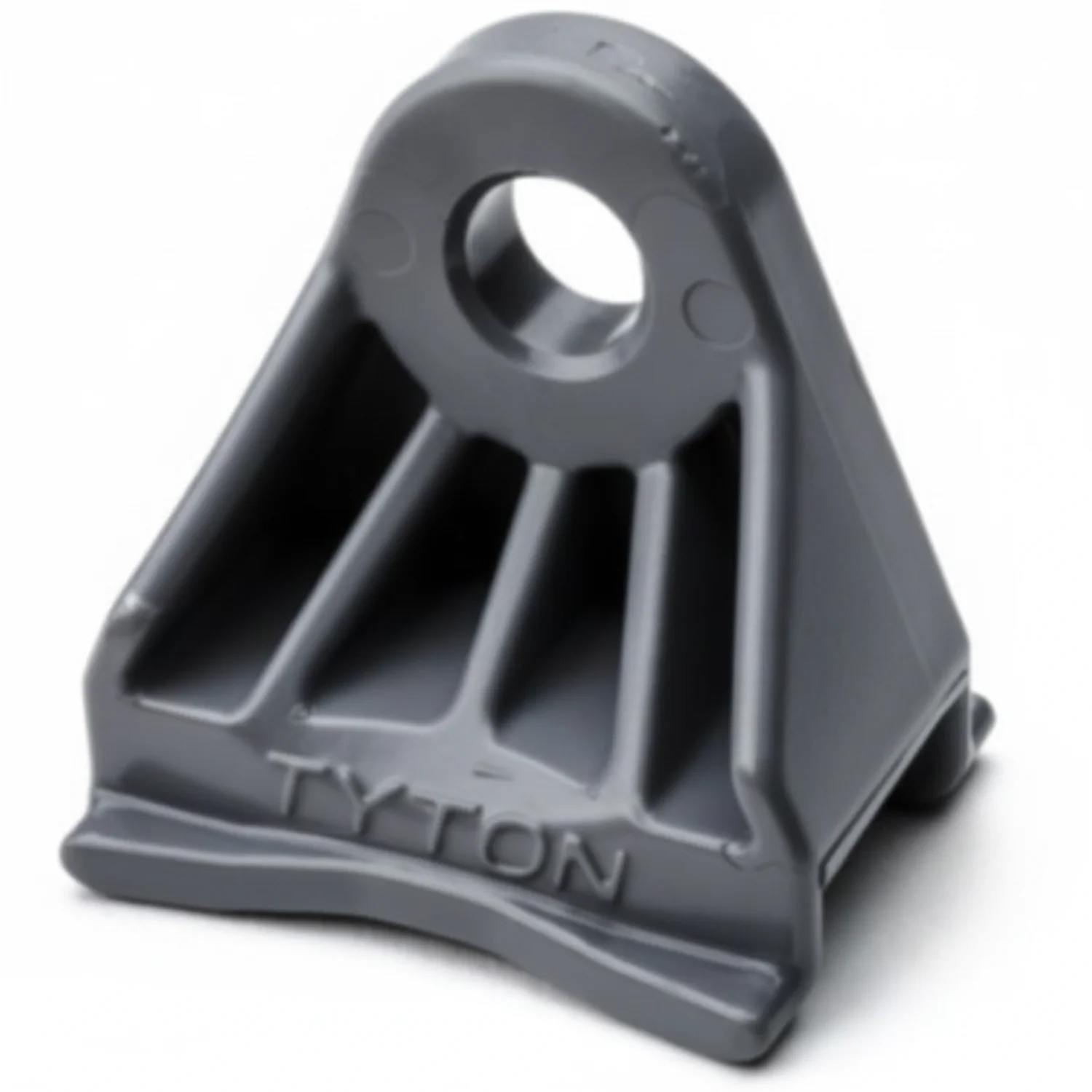

HellermannTyton SAM83HIRHSH1 Axial Oval Mount, .31" (8mm) Mounting Hole, PA66HIRHS, Gray, 500/pkg

Specifications

• Material: Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
• Color: Gray
• Length: 1.40"
• Width: 1"
• Height: 1.40"
• Cable Tie Width Max: 0.5"
• Mounting Hole Diameter: 0.31"
• Operating Temperature: -40°F to +230°F (-40°C to +110°C)
• Flammability: UL 94 HB
• RoHS Compliant: Yes
• REACH Compliant: Yes
• Bag Quantity: 500

Performance Advantages

• PA66 high-impact, heat-stabilized, UV-resistant construction for demanding outdoor environments.
• Stud-mount design slides over existing bolts or studs for fast, tool-free installation.
• Rated UL 94 HB for use in flame-sensitive installations.
• RoHS-compliant construction ensures regulatory conformance.
• Positions bundles off cross members and frame rails to prevent abrasion and chafing.
• Metal insert bushing accommodates high-torque installation.
• Made with high-impact, heat stabilized, and UV material ideal for trucking and heavy equipment environments.

Applications

• Electrical panel and enclosure cable routing
• Automotive and aerospace wire harness retention
• Telecommunications and data center cable management
• HVAC and industrial equipment wiring organization
• OEM equipment manufacturing and assembly lines

Installation Notes

• Install the mount per the manufacturer's recommended method.
• Thread the cable tie through the mount and tension to the desired tightness.
• Verify the mount and cable tie are fully engaged after installation.
• Do not exceed the stated operating temperature range (-40°F to +230°F (-40°C to +110°C)).

Packaging

• Supplied in packages of 500.
