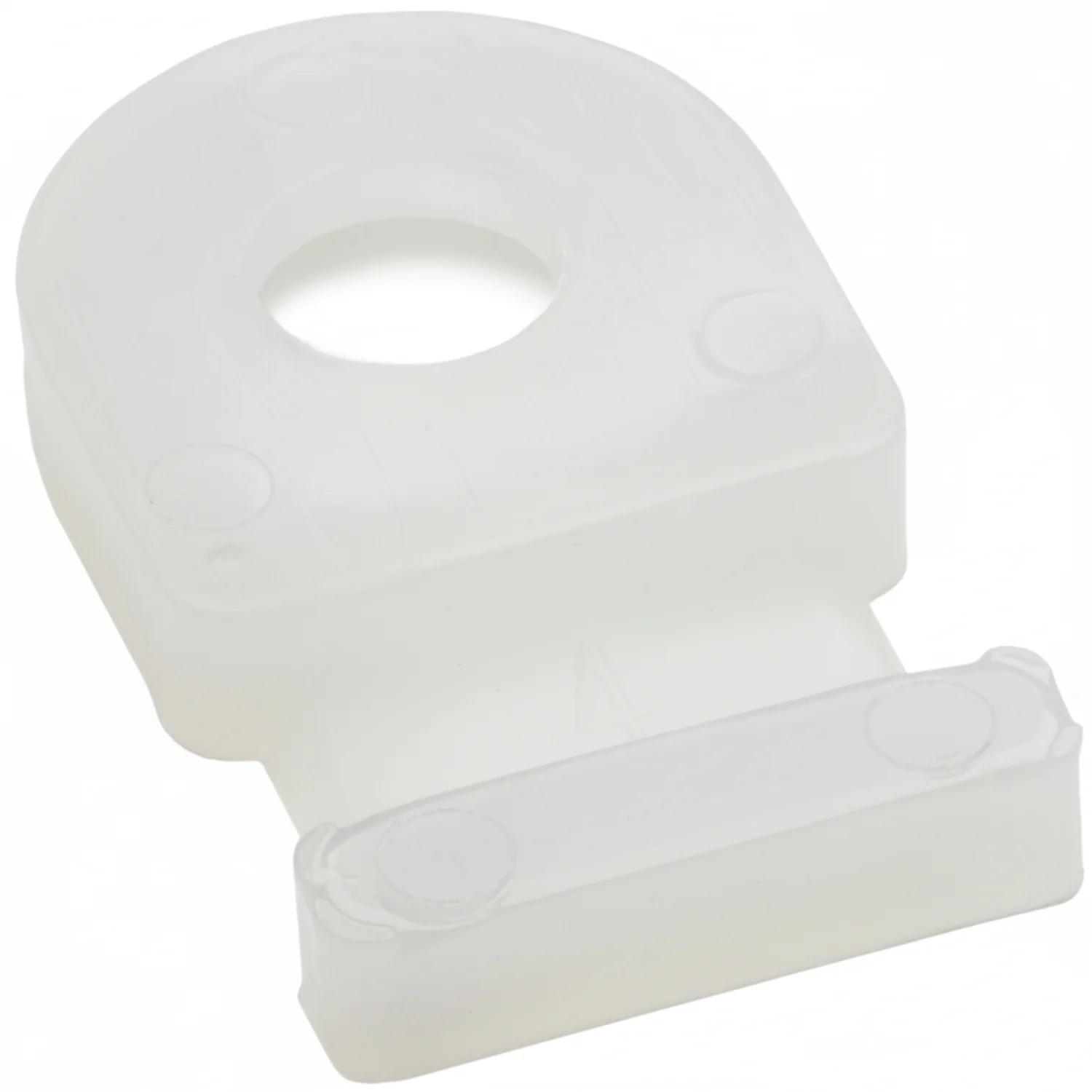

HellermannTyton MB29C2 Cable Tie Anchor Mount, .81" x .49", .193" Hole Dia, .18" Max Tie Width, PA66, Natural, 100/pkg

Specifications

• Material: Polyamide 6.6 (PA66)
• Color: Natural
• Length: 0.81"
• Width: 0.49"
• Height: 0.13"
• Cable Tie Width Max: 0.18"
• Mounting Hole Diameter: 0.193"
• Operating Temperature: -40°F to +185°F (-40°C to +85°C)
• Flammability: UL 94 V2
• Halogen Free: Yes
• RoHS Compliant: Yes
• Bag Quantity: 100

Performance Advantages

• PA66 / Nylon 6.6 construction provides excellent mechanical strength, chemical resistance, and dimensional stability.
• Secure mounting design provides reliable cable tie attachment across a range of surfaces.
• Rated UL 94 V2 for use in flame-sensitive installations.
• RoHS-compliant construction ensures regulatory conformance.
• Compact size for areas with limited mounting space.
• Simple to install with a screw or rivet.
• Single hole attachment with two-way entry for cable tie.

Applications

• Electrical panel and enclosure cable routing
• Automotive and aerospace wire harness retention
• Telecommunications and data center cable management
• HVAC and industrial equipment wiring organization
• OEM equipment manufacturing and assembly lines

Installation Notes

• Install the mount per the manufacturer's recommended method.
• Thread the cable tie through the mount and tension to the desired tightness.
• Verify the mount and cable tie are fully engaged after installation.
• Do not exceed the stated operating temperature range (-40°F to +185°F (-40°C to +85°C)).

Packaging

• Supplied in packages of 100.
