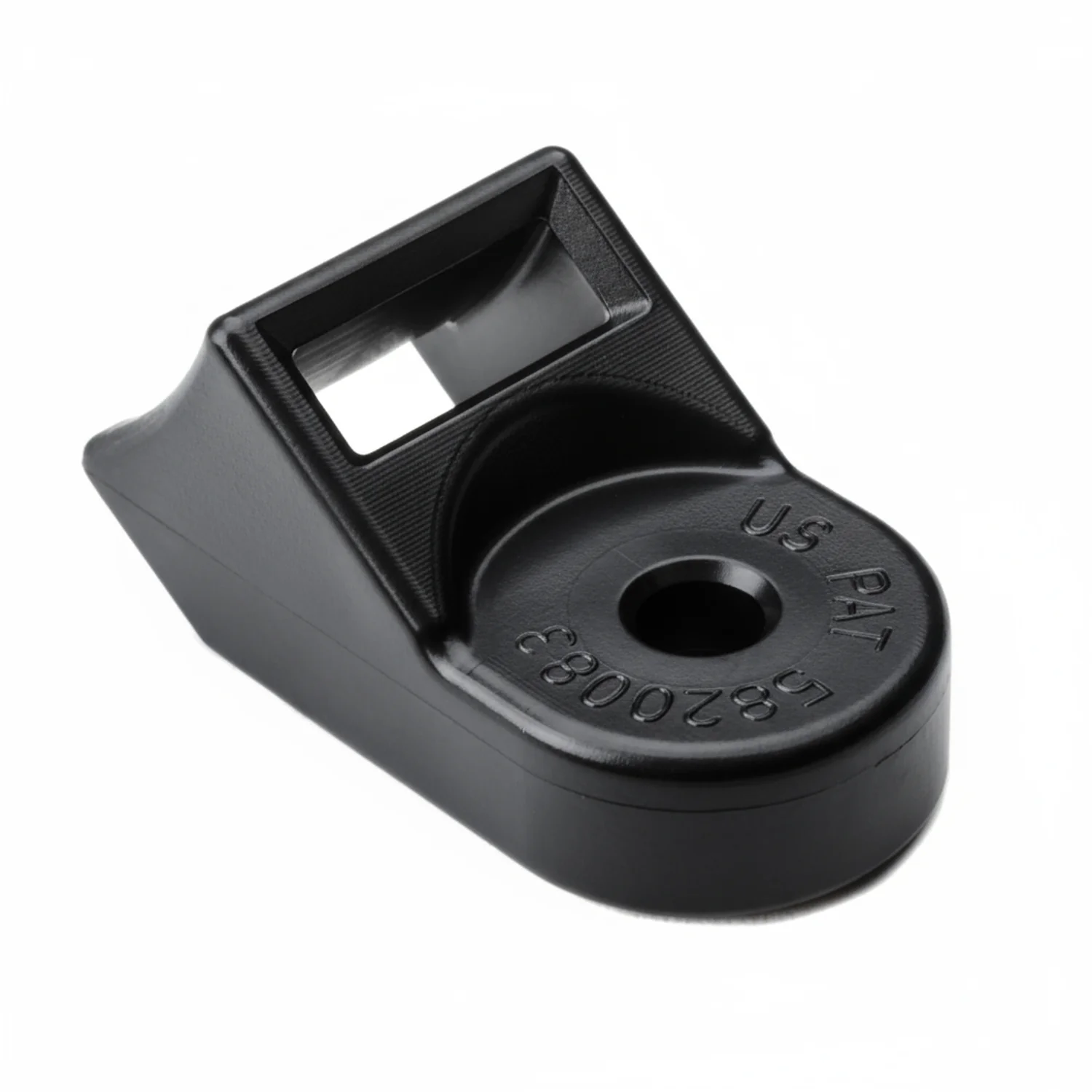

HellermannTyton HDM190HIRC2 Standard Torque Cable Tie Mount, Mtg Hole Dia. 0.1875", Max Torque 115.0 in lbs, PA66HIRHSUV, Black, 100/pkg

Specifications

• Material: Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
• Color: Black
• Length: 1.43"
• Width: 0.76"
• Height: 0.66"
• Cable Tie Width Max: 0.5"
• Mounting Hole Diameter: 0.1875"
• Maximum Torque: 132.5 kgf-cm / 9.583 lbf-ft
• Operating Temperature: -40°F to +230°F (-40°C to +110°C)
• Flammability: UL 94 HB
• RoHS Compliant: Yes
• REACH Compliant: Yes
• Bag Quantity: 100

Performance Advantages

• PA66 high-impact, heat-stabilized, UV-resistant construction for demanding outdoor environments.
• Secure mounting design provides reliable cable tie attachment across a range of surfaces.
• Rated UL 94 HB for use in flame-sensitive installations.
• RoHS-compliant construction ensures regulatory conformance.
• Mount and tie combination makes it easy to service bundles in the field.
• Made from impact modified, heat stabilized, UV resistant material, ideal for heavy duty environments.
• Eliminates the needs for multiple sized fix diameter clamps.

Applications

• Electrical panel and enclosure cable routing
• Automotive and aerospace wire harness retention
• Telecommunications and data center cable management
• HVAC and industrial equipment wiring organization
• OEM equipment manufacturing and assembly lines

Installation Notes

• Install the mount per the manufacturer's recommended method.
• Do not exceed the maximum torque of 132.5 kgf-cm / 9.583 lbf-ft.
• Thread the cable tie through the mount and tension to the desired tightness.
• Verify the mount and cable tie are fully engaged after installation.
• Do not exceed the stated operating temperature range (-40°F to +230°F (-40°C to +110°C)).

Packaging

• Supplied in packages of 100.
