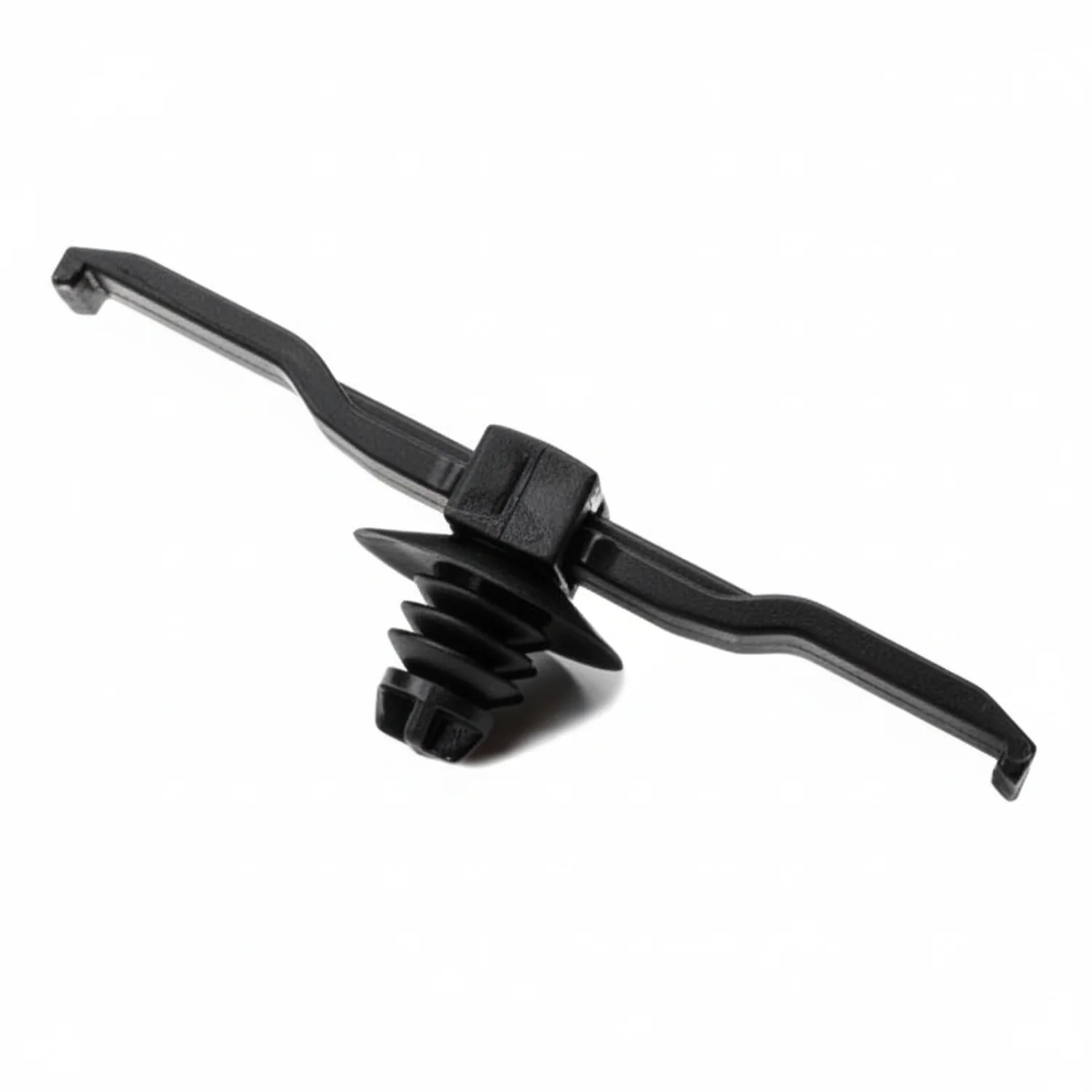

HellermannTyton 151-02901 Bundling Clip with Fir Tree, 2.1" Long, 0.02 - 0.08" Panel Thickness, PA66, Black, 500/pkg

Specifications

• Material: Polyamide 6.6 (PA66)
• Color: Black
• Length: 2.1"
• Width: 0.24"
• Height: 0.3"
• Mounting Hole Diameter: 0.26-0.28
• Operating Temperature: -40°F to +185°F (-40°C to +85°C)
• Flammability: UL 94 V2
• RoHS Compliant: Yes
• REACH Compliant: Yes
• Bag Quantity: 500

Performance Advantages

• PA66 / Nylon 6.6 construction provides excellent mechanical strength and chemical resistance.
• Fir-tree push-mount design enables fast, tool-free insertion into pre-drilled holes with secure retention.
• Low insertion force and high extraction force ensures easy installation with reliable hold.
• Rated UL 94 V2 for use in flame-sensitive installations.
• RoHS-compliant construction ensures regulatory conformance.
• The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters.

Applications

• Automotive and aerospace wire harness mounting to body panels and chassis
• Appliance and equipment cable routing through pre-drilled panel holes
• Industrial control panel and enclosure cable management
• OEM assembly line cable fastening and bundling
• Telecommunications and data center structured cable routing

Installation Notes

• Align the fir-tree stem with the pre-drilled mounting hole and push firmly until the barbs lock into place.
• Thread the cable tie through the mount and around the cable bundle, then tension to the desired tightness.
• Verify the fir-tree is fully seated and the cable tie is properly engaged after installation.
• To remove, compress the fir-tree barbs from the back side and push through the hole.
• Do not exceed the stated operating temperature range (-40°F to +185°F (-40°C to +85°C)).

Packaging

• Supplied in packages of 500.
