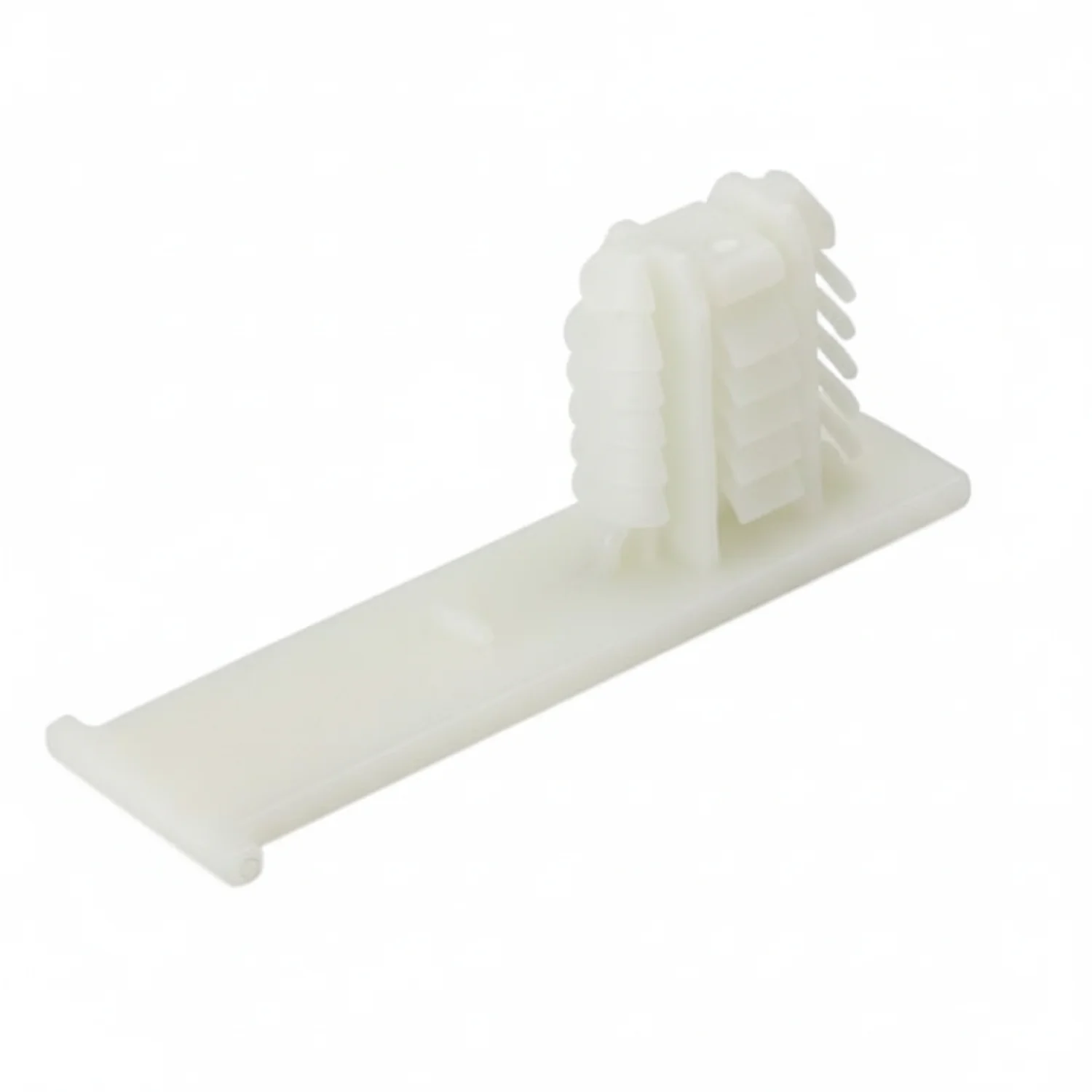

HellermannTyton 151-01240 Bundling Clip w/Oval Fir Tree, 1.52" L, 0.02 - 0.24" Panel Thickness, PA66HIRHS, Natural, 10000/ctn

Specifications

• Material: Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
• Color: Natural
• Length: 1.52"
• Height: 0.60"
• Mounting Hole Diameter: 0.24-0.51
• Operating Temperature: -40°F to +230°F (-40°C to +110°C)
• RoHS Compliant: Yes
• REACH Compliant: Yes
• Bag Quantity: 10000

Performance Advantages

• PA66 high-impact, heat-stabilized construction withstands vibration, chemicals, and elevated temperatures.
• Fir-tree push-mount design enables fast, tool-free insertion into pre-drilled holes with secure retention.
• Low insertion force and high extraction force ensures easy installation with reliable hold.
• RoHS-compliant construction ensures regulatory conformance.
• The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters.

Applications

• Automotive and aerospace wire harness mounting to body panels and chassis
• Appliance and equipment cable routing through pre-drilled panel holes
• Industrial control panel and enclosure cable management
• OEM assembly line cable fastening and bundling
• Telecommunications and data center structured cable routing

Installation Notes

• Align the fir-tree stem with the pre-drilled mounting hole and push firmly until the barbs lock into place.
• Thread the cable tie through the mount and around the cable bundle, then tension to the desired tightness.
• Verify the fir-tree is fully seated and the cable tie is properly engaged after installation.
• To remove, compress the fir-tree barbs from the back side and push through the hole.
• Do not exceed the stated operating temperature range (-40°F to +230°F (-40°C to +110°C)).

Packaging

• Supplied in packages of 10000.
