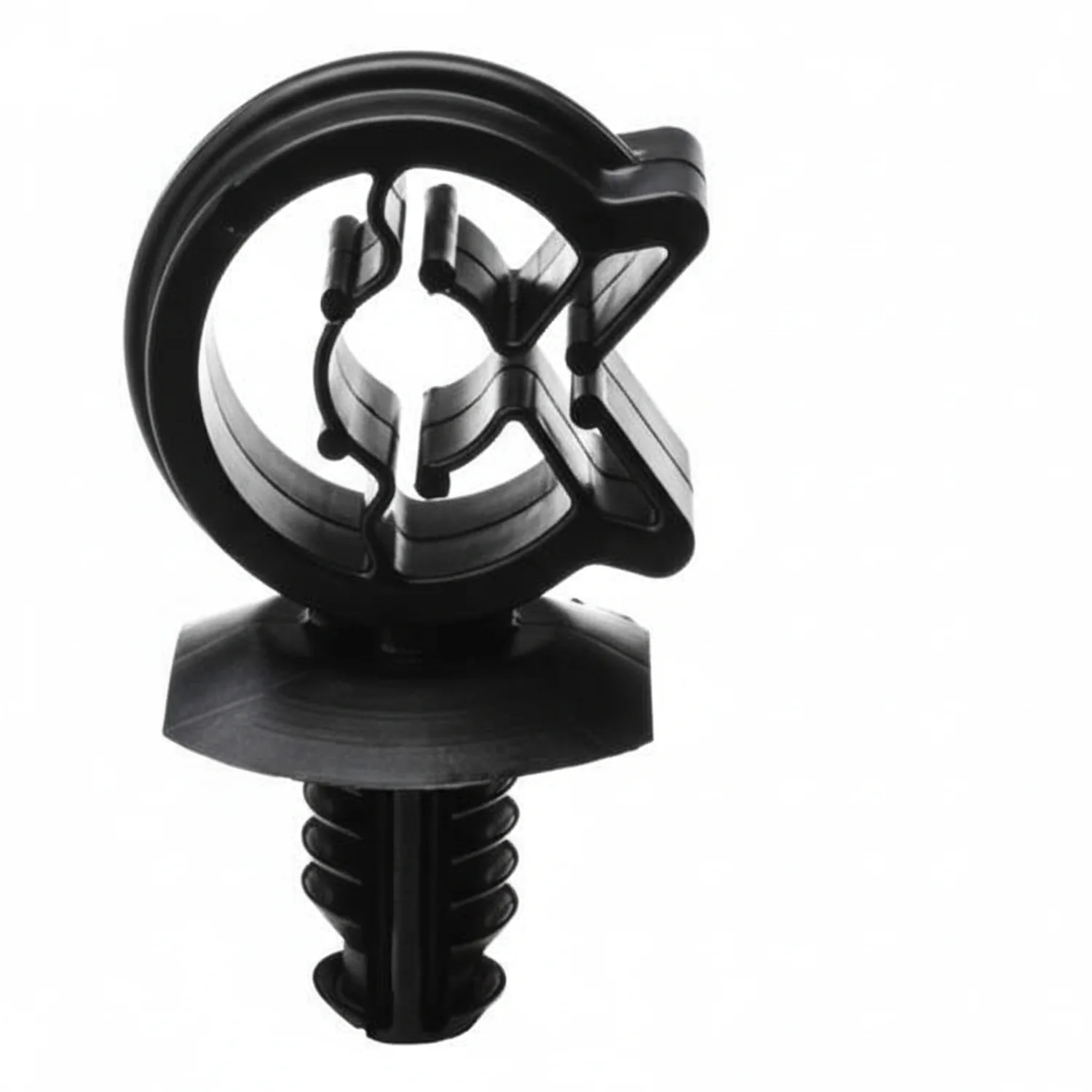

HellermannTyton 151-00927 Fir Tree C-Clip, .24"–.30" Bundle Dia, .03"–.25" Panel, .26" Mnt Hole, PA66HIRHSUV, Black, 100/pkg

Specifications

• Material: Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
• Color: Black
• Width: 0.72"
• Height: 1.32"
• Bundle Diameter Min: 0.24"
• Bundle Diameter Max: 0.29"
• Operating Temperature: -65°F to +230°F (-54°C to +110°C)
• Flammability: UL 94 HB
• RoHS Compliant: Yes
• REACH Compliant: Yes
• Bag Quantity: 100

Performance Advantages

• PA66 high-impact, heat-stabilized, UV-resistant construction for demanding outdoor environments.
• Fir-tree push-mount design enables fast, tool-free insertion into pre-drilled holes with secure retention.
• Low insertion force and high extraction force ensures easy installation with reliable hold.
• Rated UL 94 HB for use in flame-sensitive installations.
• RoHS-compliant construction ensures regulatory conformance.
• Pre-drilled holes allows for Easy installation by hand.
• Cable can be removed and reinstalled without removing the clip, providing multiple use options.
• Made of PA66HIRHSUV material for withstanding extreme conditions.

Applications

• Automotive and aerospace wire harness mounting to body panels and chassis
• Appliance and equipment cable routing through pre-drilled panel holes
• Industrial control panel and enclosure cable management
• OEM assembly line cable fastening and bundling
• Telecommunications and data center structured cable routing

Installation Notes

• Align the fir-tree stem with the pre-drilled mounting hole and push firmly until the barbs lock into place.
• Thread the cable tie through the mount and around the cable bundle, then tension to the desired tightness.
• Verify the fir-tree is fully seated and the cable tie is properly engaged after installation.
• To remove, compress the fir-tree barbs from the back side and push through the hole.
• Do not exceed the stated operating temperature range (-65°F to +230°F (-54°C to +110°C)).

Packaging

• Supplied in packages of 100.
