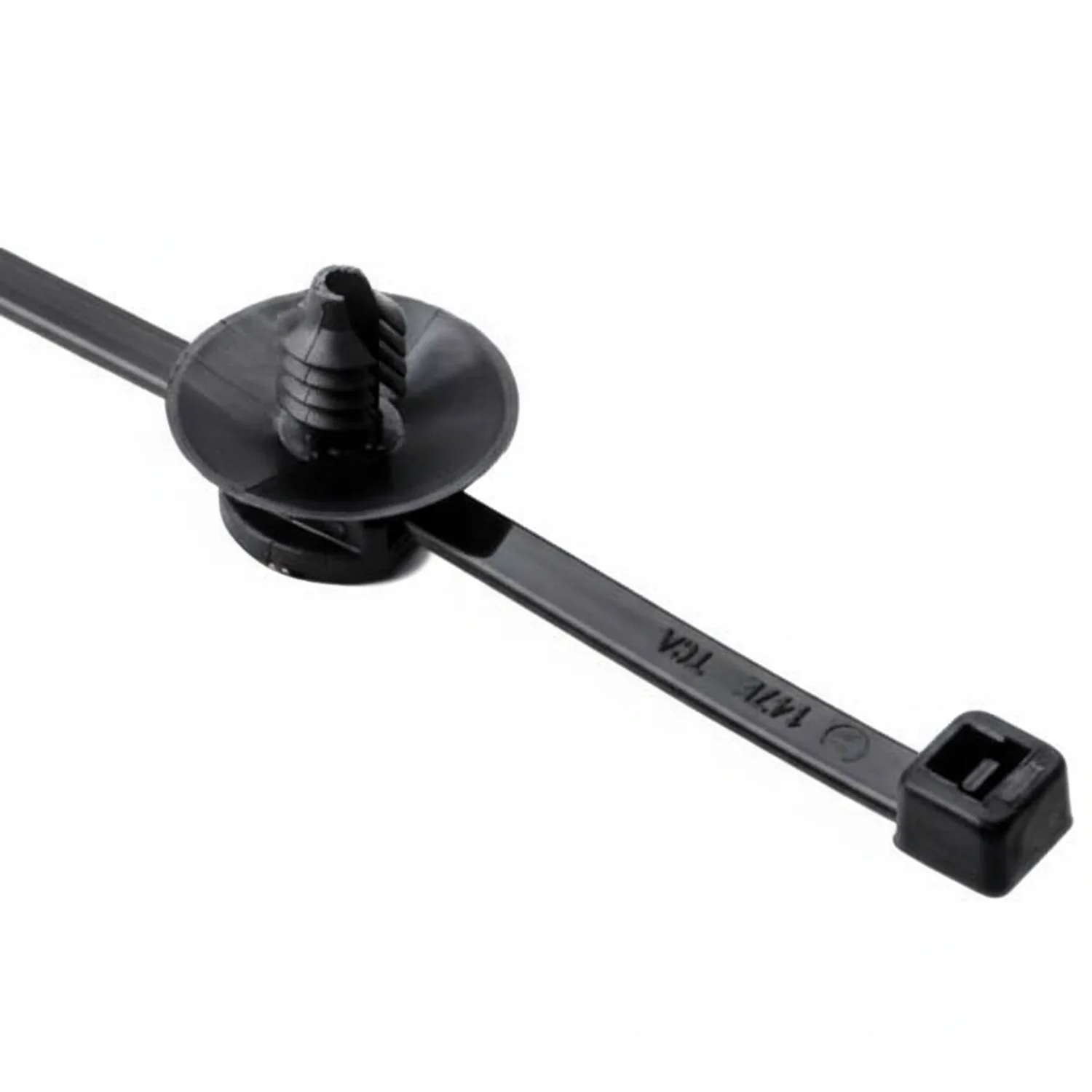

HellermannTyton 150-55850 2-Piece Cable Tie/Fir Tree Mount, 6.0"L, .17"–.20" Mounting Hole Diameter, PA66HS, Black, 500/pkg

Specifications

• Material: Polyamide 6.6 heat stabilized (PA66HS) Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
• Color: Black
• Length: 6"
• Width: 0.14"
• Tensile Strength: 30lb
• Operating Temperature: -40°F to +221°F (-40°C to +105°C)
• Flammability: UL 94 HB
• RoHS Compliant: Yes
• REACH Compliant: Yes
• Bag Quantity: 500

Performance Advantages

• PA66 high-impact, heat-stabilized construction withstands vibration, chemicals, and elevated temperatures.
• Fir-tree push-mount design enables fast, tool-free insertion into pre-drilled holes with secure retention.
• Low insertion force and high extraction force ensures easy installation with reliable hold.
• Rated UL 94 HB for use in flame-sensitive installations.
• RoHS-compliant construction ensures regulatory conformance.
• Friction tab inside the fir tree allows the tie to sit in mount without falling out prior to installation.
• Disc feature prevents rattling in high-vibration applications and protects against debris ingress.

Applications

• Automotive and aerospace wire harness mounting to body panels and chassis
• Appliance and equipment cable routing through pre-drilled panel holes
• Industrial control panel and enclosure cable management
• OEM assembly line cable fastening and bundling
• Telecommunications and data center structured cable routing

Installation Notes

• Align the fir-tree stem with the pre-drilled mounting hole and push firmly until the barbs lock into place.
• Thread the cable tie through the mount and around the cable bundle, then tension to the desired tightness.
• Verify the fir-tree is fully seated and the cable tie is properly engaged after installation.
• To remove, compress the fir-tree barbs from the back side and push through the hole.
• Do not exceed the stated operating temperature range (-40°F to +221°F (-40°C to +105°C)).

Packaging

• Supplied in packages of 500.
